F34 Truss Placement
TRP includes its own F34 truss system.
Compatible fixtures can be attached to appropriate F34 structures in several ways.

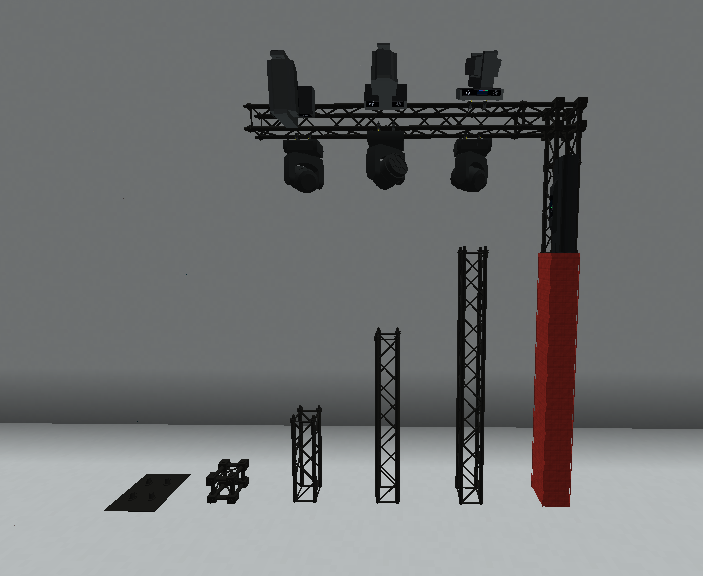

Supported mounting positions include:
- Top
- Bottom
- Side / Rail
The F34 system detects neighbouring components and mounting orientation so fixtures can be positioned correctly relative to the truss structure.

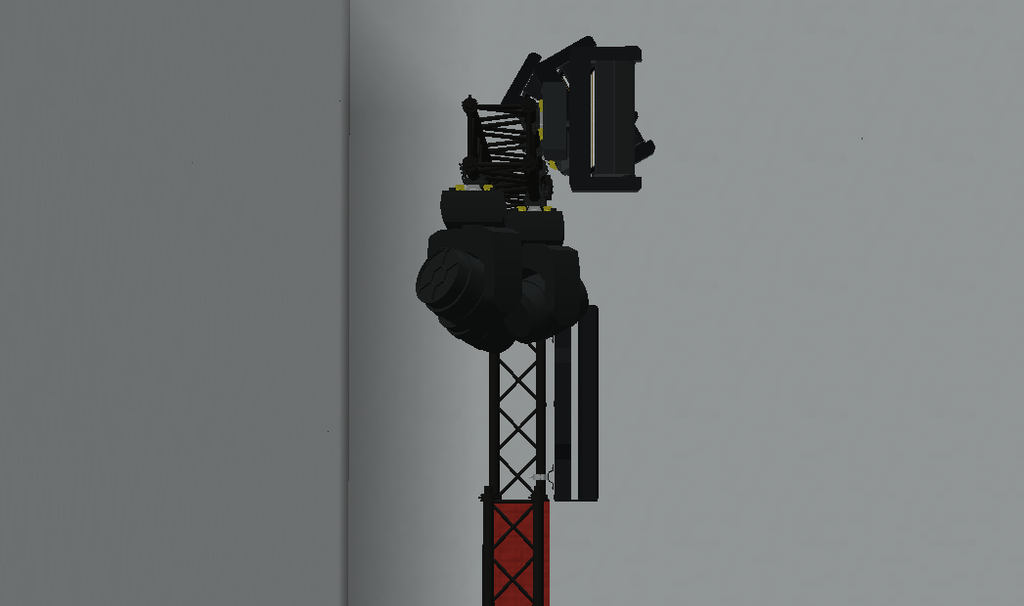

Side / Rail Mounting
Horizontal F34 sections support fixture placement on their side rails.
When a fixture is placed on a valid rail, TRP stores the corresponding mounting orientation and renders the fixture according to that position.
Side-mounted fixtures can later be adjusted using the Truss Mount Tool.
This allows the physical mounting angle to be changed without modifying the fixture’s DMX Pan or Tilt values.
